Menus and actions

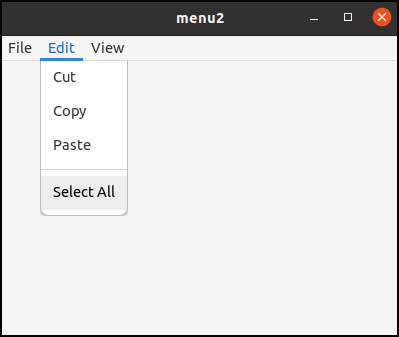

Users often use menus to tell a command to the application. It is like this:

Menu

There are two types of objects.

  • “File”, “Edit”, “View”, “Cut”, “Copy”, “Paste” and “Select All”. They are called “menu item” or simply “item”. When the user clicks one of these items, then something will happen.
  • Menubar, submenu referenced by “Edit” item and two sections. They are called “menu”. Menu is an ordered list of items. They are similar to arrays.

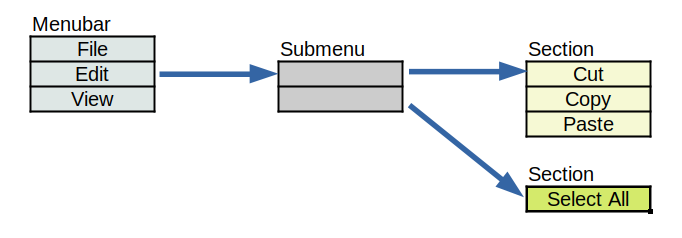

Menu structure
  • Menubar is a menu which has three items, which are “File”, “Edit” and “View”.
  • The menu item labeled “Edit” has a link to the submenu which has two items. These two items don’t have labels. Each item refers to a section.
  • The first section is a menu which has three items – “Cut”, “Copy” and “Paste”.
  • The second section is a menu which has one item – “Select All”.

Menus can build a complicated structure thanks to the links of menu items.

GMenuModel, GMenu and GMenuItem

GMenuModel is an abstract object which represents a menu. GMenu is a simple implementation of GMenuModel and a child object of GMenuModel.

GObject -- GMenuModel -- GMenu

Because GMenuModel is an abstract object, it isn’t instantiatable. Therefore, it doesn’t have any functions to create its instance. If you want to create a menu, use g_menu_new to create a GMenu instance. GMenu inherits all the functions of GMenuModel.

GMenuItem is an object directly derived from GObject. GMenuItem and Gmenu (or GMenuModel) don’t have a parent-child relationship.

GObject -- GMenuModel -- GMenu
GObject -- GMenuItem

GMenuItem has attributes. One of the attributes is label. For example, there is a menu item which has “Edit” label in the first diagram. “Cut”, “Copy”, “Paste” and “Select All” are also the labels of the menu items. Other attributes will be explained later.

Some menu items have a link to another GMenu. There are two types of links, submenu and section.

GMenuItem can be inserted, appended or prepended to GMenu. When it is inserted, all of the attributes and link values are copied and stored in the menu. The GMenuItem itself is not really inserted. Therefore, after the insertion, GMenuItem is useless and it should be freed. The same goes for appending or prepending.

The following code shows how to append GMenuItem to GMenu.

GMenu *menu = g_menu_new ();
GMenuItem *menu_item_quit = g_menu_item_new ("Quit", "app.quit");
g_menu_append_item (menu, menu_item_quit);
g_object_unref (menu_item_quit);

One of the attributes of menu items is an action. This attribute points an action object.

There are two action objects, GSimpleAction and GPropertyAction. GSimpleAction is often used. And it is used with a menu item. Only GSimpleAction is described in this section.

An action corresponds to a menu item will be activated when the menu item is clicked. Then the action emits an activate signal.

  1. menu item is clicked.
  2. The corresponding action is activated.
  3. The action emits a signal.
  4. The connected handler is invoked.

The following code is an example.

static void
quit_activated(GSimpleAction *action, GVariant *parameter, gpointer app) { ... ... ...}

GSimpleAction *act_quit = g_simple_action_new ("quit", NULL);
g_action_map_add_action (G_ACTION_MAP (app), G_ACTION (act_quit));
g_signal_connect (act_quit, "activate", G_CALLBACK (quit_activated), app);
GMenuItem *menu_item_quit = g_menu_item_new ("Quit", "app.quit");
  • The variable menu_item_quit points a menu item. It is actually a pointer, but we often say that menu_item_quit is a menu item. It has a label “Quit” and is connected to an action “app.quit”. “app” is a prefix and “quit” is the name of the action. The prefix “app” means that the action belongs to the GtkApplication instance.
  • act_quit is an action. It has a name “quit”. The function g_simple_action_new creates a stateless action. So, act_quit is stateless. The meaning of stateless will be explained later. The argument NULL means that the action doesn’t have an parameter. Most of the actions are stateless and have no parameter.
  • The action act_quit is added to the GtkApplication instance with g_action_map_add_action. So, the action’s scope is application. The prefix of app.quit indicates the scope.
  • “activate” signal of the action is connected to the handler quit_activated.

If the menu is clicked, the corresponding action “quit” will be activated and emits an “activate” signal. Then, the handler quit_activated is called.

A menu bar and menus are traditional. Menu buttons are often used instead of a menu bar lately, but the old style is still used widely.

Applications have only one menu bar. If an application has two or more windows which have menu bars, the menu bars are exactly the same. Because every window refers to the same menubar instance in the application.

An application’s menu bar is usually unchanged once it is set. So, it is appropriate to set it in the “startup” handler. Because the handler is called only once in the primary application instance.

I think it is good for readers to clarify how applications behave.

  • When an application runs for the first time, the instance is called primary.
  • The primary instance registers itself to the system. If it succeeds, it emits “startup” signal.
  • When the instance is activated, an “activate” or “open” signal is emitted.
  • If the application is run for the second time or later and there exists a primary instance, the instance is called a remote instance.
  • A remote instance doesn’t emit “startup” signal.
  • If it tries to emit an “activate” or “open” signal, the signals are not emitted on the remote instance but primary instance.
  • The remote instance quits.

Therefore, an “activate” or “open” handler can be called twice or more. On the other hand, a “startup” handler is called once. So, the menubar should be set in the “startup” handler.

static void
app_startup (GApplication *app) {
... ... ...
  gtk_application_set_menubar (GTK_APPLICATION (app), G_MENU_MODEL (menubar));
... ... ...
}

Simple example

The following is a simple example of menus and actions. The source file menu1.c is located at src/menu directory.

#include <gtk/gtk.h>

static void
quit_activated(GSimpleAction *action, GVariant *parameter, GApplication *application) {
  g_application_quit (application);
}

static void
app_activate (GApplication *application) {
  GtkApplication *app = GTK_APPLICATION (application);
  GtkWidget *win = gtk_application_window_new (app);
  gtk_window_set_title (GTK_WINDOW (win), "menu1");
  gtk_window_set_default_size (GTK_WINDOW (win), 400, 300);

  gtk_application_window_set_show_menubar (GTK_APPLICATION_WINDOW (win), TRUE);
  gtk_window_present (GTK_WINDOW (win));
}

static void
app_startup (GApplication *application) {
  GtkApplication *app = GTK_APPLICATION (application);

  GSimpleAction *act_quit = g_simple_action_new ("quit", NULL);
  g_action_map_add_action (G_ACTION_MAP (app), G_ACTION (act_quit));
  g_signal_connect (act_quit, "activate", G_CALLBACK (quit_activated), application);

  GMenu *menubar = g_menu_new ();
  GMenuItem *menu_item_menu = g_menu_item_new ("Menu", NULL);
  GMenu *menu = g_menu_new ();
  GMenuItem *menu_item_quit = g_menu_item_new ("Quit", "app.quit");
  g_menu_append_item (menu, menu_item_quit);
  g_object_unref (menu_item_quit);
  g_menu_item_set_submenu (menu_item_menu, G_MENU_MODEL (menu));
  g_object_unref (menu);
  g_menu_append_item (menubar, menu_item_menu);
  g_object_unref (menu_item_menu);

  gtk_application_set_menubar (GTK_APPLICATION (app), G_MENU_MODEL (menubar));
}

#define APPLICATION_ID "com.github.ToshioCP.menu1"

int
main (int argc, char **argv) {
  GtkApplication *app;
  int stat;

  app = gtk_application_new (APPLICATION_ID, G_APPLICATION_DEFAULT_FLAGS);
  g_signal_connect (app, "startup", G_CALLBACK (app_startup), NULL);
  g_signal_connect (app, "activate", G_CALLBACK (app_activate), NULL);

  stat =g_application_run (G_APPLICATION (app), argc, argv);
  g_object_unref (app);
  return stat;
}
  • 3-6: quit_activated is a handler of the “activate” signal on the action act_quit. Handlers of the “activate” signal have three parameters.
    1. The action instance on which the signal is emitted.
    2. Parameter. In this example it is NULL because the second argument of g_simple_action_new (line 23) is NULL. You don’ t need to care about it.
    3. User data. It is the fourth parameter in the g_signal_connect (line 25) that connects the action and the handler.
  • 5: The function g_application_quit immediately quits the application.
  • 8-17: app_activate is an “activate” signal handler on the application.
  • 11-13: Creates a GtkApplicationWindow win. And sets the title and the default size.
  • 15: Sets GtkApplicationWindow to show the menubar.
  • 16: Shows the window.
  • 19-38: app_startup is a “startup” signal handler on the application.
  • 23: Creates GSimpleAction act_quit. It is stateless. The first argument of g_simple_action_new is a name of the action and the second argument is a parameter. If you don’t need the parameter, pass NULL. Therefore, act_quit has a name “quit” and no parameter.
  • 24: Adds the action to GtkApplication app. GtkApplication implements an interface GActionMap and GActionGroup. GtkApplication (GActionMap) can have a group of actions and the actions are added with the function g_action_map_add_action. This function is described in Gio API Reference – g_action_map_add_action. Because this action belongs to GtkApplication, its scope is “app” and it is referred with “app.quit” if the prefix (scope) is necessary.
  • 25: Connects “activate” signal of the action and the handler quit_activated.
  • 27-30: Creates GMenu and GMenuItem instances. menubar and menu are GMenu. menu_item_menu and menu_item_quit are GMenuItem. menu_item_menu has a label “Menu” and no action. menu_item_quit has a label “Quit” and an action “app.quit”.
  • 31-32: Appends menu_item_quit to menu. As I mentioned before, all the attributes and links are copied and used to form a new item in menu. Therefore after the addition, menu_item_quit is no longer needed. It is freed by g_object_unref.
  • 33-34: Sets the submenu link in menu_item_menu to point menu. Then, menu is no more useful and it is freed.
  • 35-36: Appends menu_item_menu to menubar. Then frees menu_item_menu. GMenu and GMenuItem are built and finally connected to the variable menubar. The structure of the menu is shown in the diagram below.
  • 38: The menubar is inserted to the application.

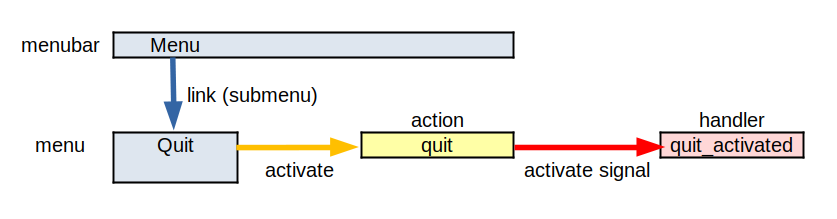

menu and action

Compiling

Change your current directory to src/menu. Use comp to compile menu1.c.

$ comp menu1
$ ./a.out

Then, a window appears. Click on “Menu” on the menubar, then a menu appears. Click on “Quit” menu, then the application quits.

Screenshot of menu1

Primary and remote application instances

Let’s try running the application twice. Use & in your shell command line, then the application runs concurrently.

$ ./a.out &
[1] 70969
$ ./a.out
$

Then, two windows appear.

  • The first ./a.out calls the application and a primary instance is created. It calls “startup” and “activate” handlers and shows a window.
  • The second./a.out calls the the application again and the created instance is a remote one. It doesn’t emit “startup” signal. And it activates the application but the “activate” signal is emitted on the primary instance. The remote instance quits.
  • The primary instance called “activate” handler. The handler creates a new window. It adds a menu bar to the window with gtk_application_window_set_show_menubar function.

Both the windows have menu bars. And they are exactly the same. The two windows belong to the primary instance.

If you click on the “Quit” menu, the application (the primary instance) quits.

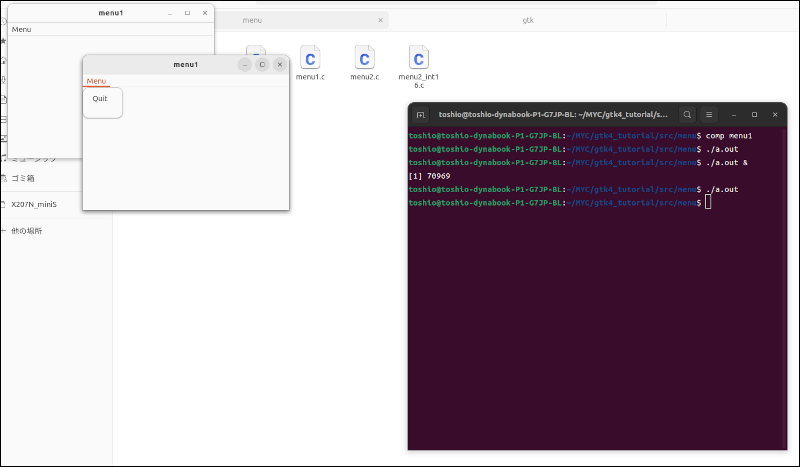

menu1 – two windows

The second execution makes a new window. However, it depends on the “activate” handler. If you create your window in the startup handler and the activate handler just presents the window, no new window is created at the second execution. For example, tfe (text file editor) doesn’t create a second window. It just creates a new notebook page. Because its activate handler doesn’t create any window but just creates a new notebook page.

Second or more executions often happen on the desktop applications. If you double-click the icon twice or more, the application is run multiple times. Therefore, you need to think about your startup and activate (open) handler carefully.
