TfeTextView Class

The TfeTextView class will be finally completed in this section. The remaining topic is functions. TfeTextView functions, which are constructors and instance methods, are described in this section.

The source files are in the directory src/tfetextview. You can get them by downloading the repository.

tfetextview.h

The header file tfetextview.h provides:

  • The type of TfeTextView, which is TFE_TYPE_TEXT_VIEW.
  • The macro G_DECLARE_FINAL_TYPE, the expansion of which includes some useful functions and definitions.
  • Constants for the open-response signal.
  • Public functions of tfetextview.c. They are constructors and instance methods.

Therefore, Any programs using TfeTextView needs to include tfetextview.h.

#pragma once

#include <gtk/gtk.h>

#define TFE_TYPE_TEXT_VIEW tfe_text_view_get_type ()
G_DECLARE_FINAL_TYPE (TfeTextView, tfe_text_view, TFE, TEXT_VIEW, GtkTextView)

/* "open-response" signal response */
enum TfeTextViewOpenResponseType
{
  TFE_OPEN_RESPONSE_SUCCESS,
  TFE_OPEN_RESPONSE_CANCEL,
  TFE_OPEN_RESPONSE_ERROR
};

GFile *
tfe_text_view_get_file (TfeTextView *tv);

void
tfe_text_view_open (TfeTextView *tv, GtkWindow *win);

void
tfe_text_view_save (TfeTextView *tv);

void
tfe_text_view_saveas (TfeTextView *tv);

GtkWidget *
tfe_text_view_new_with_file (GFile *file);

GtkWidget *
tfe_text_view_new (void);
  • 1: The preprocessor directive #pragma once makes the header file be included only once. It is non-standard but widely used.
  • 3: Includes gtk4 header files. The header file gtk4 also has the same mechanism to avoid being included multiple times.
  • 5-6: These two lines define TfeTextView type, its class structure and some useful definitions.
    • TfeTextView and TfeTextViewClass are declared as typedef of C structures.
    • You need to define a structure _TfeTextView later.
    • The class structure _TfeTextViewClass is defined here. You don’t need to define it by yourself.
    • Convenience functions TFE_TEXT_VIEW () for casting and TFE_IS_TEXT_VIEW for type check are defined.
  • 8-14: A definition of the values of the “open-response” signal parameters.
  • 16-32: Declarations of public functions on TfeTextView.

Constructors

A TfeTextView instance is created with tfe_text_view_new or tfe_text_view_new_with_file. These functions are called constructors.

GtkWidget *tfe_text_view_new (void);

It just creates a new TfeTextView instance and returns the pointer to the new instance.

GtkWidget *tfe_text_view_new_with_file (GFile *file);

It is given a Gfile object as an argument and it loads the file into the GtkTextBuffer instance, then returns the pointer to the new instance. The argument file is owned by the caller and the function doesn’t change it. If an error occurs during the creation process, NULL will be returned.

Each function is defined as follows.

GtkWidget *
tfe_text_view_new_with_file (GFile *file) {
  g_return_val_if_fail (G_IS_FILE (file), NULL);

  GtkWidget *tv;
  GtkTextBuffer *tb;
  char *contents;
  gsize length;

  if (! g_file_load_contents (file, NULL, &contents, &length, NULL, NULL)) /* read error */
    return NULL;

  tv = tfe_text_view_new();
  tb = gtk_text_view_get_buffer (GTK_TEXT_VIEW (tv));
  gtk_text_buffer_set_text (tb, contents, length);
  TFE_TEXT_VIEW (tv)->file = g_file_dup (file);
  gtk_text_buffer_set_modified (tb, FALSE);
  g_free (contents);
  return tv;
}

GtkWidget *
tfe_text_view_new (void) {
  return GTK_WIDGET (g_object_new (TFE_TYPE_TEXT_VIEW, "wrap-mode", GTK_WRAP_WORD_CHAR, NULL));
}
  • 22-25: tfe_text_view_new function. Just returns the value from the function g_object_new but casts it to the pointer to GtkWidget. The function g_object_new creates any instances of its descendant class. The arguments are the type of the class, property list and NULL, which is the end mark of the property list. TfeTextView “wrap-mode” property has GTK_WRAP_WORD_CHAR as the default value.
  • 1-20: tfe_text_view_new_with_file function.
  • 3: g_return_val_if_fail is described in GLib API Reference – g_return_val_if_fail. And also GLib API Reference – Message Logging. It tests whether the argument file is a pointer to GFile. If it’s true, the program goes on to the next line. If it’s false, it returns NULL (the second argument) immediately. And at the same time it logs out the error message (usually the log is outputted to stderr or stdout). This function is used to check the programmer’s error. If an error occurs, the solution is usually to change the (caller) program and fix the bug. You need to distinguish programmer’s errors and runtime errors. You shouldn’t use this function to find runtime errors.
  • 10-11: Reads the file. If an error occurs, NULL is returned.
  • 13: Calls the function tfe_text_view_new. The function creates TfeTextView instance and returns the pointer to the instance.
  • 14: Gets the pointer to the GtkTextBuffer instance corresponds to tv. The pointer is assigned to tb
  • 15: Assigns the contents read from the file to tb.
  • 16: Duplicates file and sets tv->file to point to it. GFile is not thread safe. The duplication makes sure that the GFile instance of tv keeps the file information even if the original one is changed by other thread.
  • 17: The function gtk_text_buffer_set_modified (tb, FALSE) sets the modification flag of tb to FALSE. The modification flag indicates that the contents have been modified. It is used when the contents are saved. If the modification flag is FALSE, it doesn’t need to save the contents.
  • 18: Frees the memories pointed to by contents.
  • 19: Returns tv, which is a pointer to the newly created TfeTextView instance. If an error happens, NULL is returned.

Save and Saveas Functions

Save and saveas functions write the contents in the GtkTextBuffer to a file.

void tfe_text_view_save (TfeTextView *tv)

The function tfe_text_view_save writes the contents in the GtkTextBuffer to a file specified by tv->file. If tv->file is NULL, then it shows file chooser dialog and prompts the user to choose a file to save. Then it saves the contents to the file and sets tv->file to point to the GFile instance for the file.

void tfe_text_view_saveas (TfeTextView *tv)

The function saveas shows a file chooser dialog and prompts the user to select an existing file or specify a new file to save. Then, the function changes tv->file and save the contents to the specified file. If an error occurs, it is shown to the user through the alert dialog. The error is managed only in the TfeTextView and no information is notified to the caller.

save_file Function

static gboolean
save_file (GFile *file, GtkTextBuffer *tb, GtkWindow *win) {
  GtkTextIter start_iter;
  GtkTextIter end_iter;
  char *contents;
  gboolean stat;
  GtkAlertDialog *alert_dialog;
  GError *err = NULL;

  gtk_text_buffer_get_bounds (tb, &start_iter, &end_iter);
  contents = gtk_text_buffer_get_text (tb, &start_iter, &end_iter, FALSE);
  stat = g_file_replace_contents (file, contents, strlen (contents), NULL, TRUE, G_FILE_CREATE_NONE, NULL, NULL, &err);
  if (stat)
    gtk_text_buffer_set_modified (tb, FALSE);
  else {
    alert_dialog = gtk_alert_dialog_new ("%s", err->message);
    gtk_alert_dialog_show (alert_dialog, win);
    g_object_unref (alert_dialog);
    g_error_free (err);
  }
  g_free (contents);
  return stat;
}
  • The function save_file is called from saveas_dialog_response and tfe_text_view_save. This function saves the contents of the buffer to the file given as an argument. If error happens, it displays an error message. So, a caller of this function don’t need to take care of errors. The class of this function is static. Therefore, only functions in this file (tfetextview.c) call this function. Such static functions usually don’t have g_return_val_if_fail functions.
  • 10-11: Gets the text contents from the buffer.
  • 12: The function g_file_replace_contents writes the contents to the file and returns the status (true = success/ false = fail). It has many parameters, but some of them are almost always given the same values. See the GIO documentation for details.
    • GFile* file: GFile to which the contents are saved.
    • const char* contents: contents to be saved. The string is owned by the caller.
    • gsize length: the length of the contents
    • const char* etag: entity tag. It is usually NULL.
    • gboolean make_backup: true to make a backup if the file exists. false not to make it. the file will be overwritten.
    • GFileCreateFlags flags: usually G_FILE_CREATE_NONE is fine.
    • char** new_etag: new entity tag. It is usually NULL.
    • GCancellable* cancellable: If a cancellable instance is set, the other thread can cancel this operation. it is usually NULL.
    • GError** error: If error happens, GError will be set.
  • 13,14: If no error happens, set the modified flag to be FALSE. This means that the buffer is not modified since it has been saved.
  • 16-19: If it fails to save the contents, an error message will be displayed.
  • 16: Creates an alert dialog. The parameters are printf-like format string followed by values to insert into the string. GtkAlertDialog is available since version 4.10. If your version is older than 4.10, use GtkMessageDialog instead. GtkMessageDialog is deprecated since version 4.10.
  • 17: Show the alert dialog. The parameters are the dialog and the transient parent window. This allows window managers to keep the dialog on top of the parent window, or center the dialog over the parent window. It is possible to give no parent window to the dialog by giving NULL as the argument. However, it is encouraged to give parents to dialogs.
  • 18: Releases the dialog.
  • 19: Frees the GError struct pointed to by err with g_error_free function.
  • 21: Frees contents.
  • 22: Returns the status to the caller.

save_dialog_cb Function

static void
save_dialog_cb(GObject *source_object, GAsyncResult *res, gpointer data) {
  GtkFileDialog *dialog = GTK_FILE_DIALOG (source_object);
  TfeTextView *tv = TFE_TEXT_VIEW (data);
  GtkTextBuffer *tb = gtk_text_view_get_buffer (GTK_TEXT_VIEW (tv));
  GFile *file;
  GtkWidget *win = gtk_widget_get_ancestor (GTK_WIDGET (tv), GTK_TYPE_WINDOW);
  GError *err = NULL;
  GtkAlertDialog *alert_dialog;

  if (((file = gtk_file_dialog_save_finish (dialog, res, &err)) != NULL) && save_file(file, tb, GTK_WINDOW (win))) {
    // The following is complicated. The comments here will help your understanding
    // G_IS_FILE(tv->file) && tv->file == file  => nothing to do
    // G_IS_FILE(tv->file) && tv->file != file  => unref(tv->file), tv->file=file, emit change_file signal
    // tv->file==NULL                           =>                  tv->file=file, emit change_file signal
    if (! (G_IS_FILE (tv->file) && g_file_equal (tv->file, file))) {
      if (G_IS_FILE (tv->file))
        g_object_unref (tv->file);
      tv->file = file; // The ownership of 'file' moves to TfeTextView.
      g_signal_emit (tv, tfe_text_view_signals[CHANGE_FILE], 0);
    }
  }
  if (err && err->code != GTK_DIALOG_ERROR_DISMISSED) {
    alert_dialog = gtk_alert_dialog_new ("%s", err->message);
    gtk_alert_dialog_show (alert_dialog, GTK_WINDOW (win));
    g_object_unref (alert_dialog);
    g_clear_error (&err);
  }
}
  • The function save_dialog_cb is a call back function that is given to the gtk_file_dialog_save function as an argument. The gtk_file_dialog_save shows a file chooser dialog to the user. The user chooses or types a filename and clicks on the Save button or just clicks on the Cancel button. Then the call back function is called with the result. This is the general way in GIO to manage asynchronous operations. A pair of functions g_data_input_stream_read_line_async and g_data_input_stream_read_line_finish are one example. These functions are thread-safe. The arguments of save_dialog_cb are:
    • GObject *source_object: The GObject instance that the operation was started with. It is actually the GtkFileDialog instance that is shown to the user. However, the call back function is defined as AsyncReadyCallback, which is a general call back function for an asynchronous operation. So the type is GObject and you need to cast it to GtkFileDialog later.
    • GAsyncResult *res: The result of the asynchronous operation. It will be given to the gtk_dialog_save_finish function.
    • gpointer data: A user data set in the gtk_dialog_save function.
  • 11: Calls gtk_dialog_save_finish. It is given the result res as an argument and returns a pointer to a GFile object the user has chosen. If the user has canceled or an error happens, it returns NULL, creates a GError object and sets err to point to it. If gtk_dialog_save_finish returns a GFile, the function save_file is called.
  • 12-21: If the file is successfully saved, these lines are executed. See the comments, line 12-15, for the details.
  • 23-28: If an error happens, show the error message through the alert dialog.

tfe_text_view_save Function

void
tfe_text_view_save (TfeTextView *tv) {
  g_return_if_fail (TFE_IS_TEXT_VIEW (tv));

  GtkTextBuffer *tb = gtk_text_view_get_buffer (GTK_TEXT_VIEW (tv));
  GtkWidget *win = gtk_widget_get_ancestor (GTK_WIDGET (tv), GTK_TYPE_WINDOW);

  if (! gtk_text_buffer_get_modified (tb))
    return; /* no need to save it */
  else if (tv->file == NULL)
    tfe_text_view_saveas (tv);
  else
    save_file (tv->file, tb, GTK_WINDOW (win));
}
  • The function tfe_text_view_save writes the contents to the tv->file file. It calls tfe_text_view_saveas or save_file.
  • 1-3: The function is public, i.e. it is open to the other objects. So, it doesn’t have static class. Public functions should check the parameter type with g_return_if_fail function. If tv is not a pointer to a TfeTextView instance, then it logs an error message and immediately returns. This function is similar to g_return_val_if_fail, but no value is returned because tfe_text_view_save doesn’t return a value (void).
  • 5-6: GtkTextBuffer tb and GtkWidget (GtkWindow) win are set. The function gtk_widget_get_ancestor (widget, type) returns the first ancestor of the widget with the type, which is a GType. The parent-child relationship here is the one for widgets, not classes. More precisely, the returned widget’s type is the type or a descendant object type of the type. Be careful, the “descendant object” in the previous sentence is not “descendant widget”. For example, the type of GtkWindow is GTK_TYPE_WINDOW and the one of TfeTextView is TFE_TYPE_TEXT_VIEW. The top level window may be a GtkApplicationWindow, but it is a descendant of GtkWindow. Therefore, gtk_widget_get_ancestor (GTK_WIDGET (tv), GTK_TYPE_WINDOW) possibly returns GtkWindow or GtkApplicationWindow.
  • 8-9: If the buffer hasn’t modified, it doesn’t need to be saved.
  • 10-11: If tv->file is NULL, which means no file has been given yet, it calls tfe_text_view_saveas to prompt a user to select a file and save the contents.
  • 12-13: Otherwise, it calls save_file to save the contents to the file tv->file.

tfe_text_view_saveas Function

void
tfe_text_view_saveas (TfeTextView *tv) {
  g_return_if_fail (TFE_IS_TEXT_VIEW (tv));

  GtkWidget *win = gtk_widget_get_ancestor (GTK_WIDGET (tv), GTK_TYPE_WINDOW);
  GtkFileDialog *dialog;

  dialog = gtk_file_dialog_new ();
  gtk_file_dialog_save (dialog, GTK_WINDOW (win), NULL, save_dialog_cb, tv);
  g_object_unref (dialog);
}

The function tfe_text_view_saveas shows a file chooser dialog and prompts the user to choose a file and save the contents.

  • 1-3: Check the type of tv because the function is public.
  • 6: GtkWidget win is set to the window which is an ancestor of tv.
  • 8: Creates a GtkFileDialog instance. GtkFileDialog is available since version 4.10. If your Gtk version is older than 4.10, use GtkFileChooserDialog instead. GtkFileChooserDialog is deprecated since version 4.10.
  • 9: Calls gtk_file_dialog_save function. The arguments are:
    • dialog: GtkFileDialog.
    • GTK_WINDOW (win): transient parent window.
    • NULL: NULL means no cancellable object. If you put a cancellable object here, you can cancel the operation by other thread. In many cases, it is NULL. See GCancellable for further information.
    • save_dialog_cb: A callback to call when the operation is complete. The type of the pointer to the callback function is GAsyncReadyCallback. If a cancellable object is given and the operation is cancelled, the callback won’t be called.
    • tv: This is an optional user data which is gpointer type. It is used in the callback function.
  • 10: Releases the GtkFileDialog instance because it is useless anymore.

This function just shows the file chooser dialog. The rest of the operation is done by the callback function.

Saveas process

Open function shows a file chooser dialog to a user and prompts them to choose a file. Then it reads the file and puts the text into GtkTextBuffer.

void tfe_text_view_open (TfeTextView *tv, GtkWindow *win);

The parameter win is the transient window. A file chooser dialog will be shown at the center of the window.

This function may be called just after tv has been created. In that case, tv has not been incorporated into the widget hierarchy. Therefore it is impossible to get the top-level window from tv. That’s why the function needs win parameter.

This function is usually called when the buffer of tv is empty. However, even if the buffer is not empty, tfe_text_view_open doesn’t treat it as an error. If you want to revert the buffer, calling this function is appropriate.

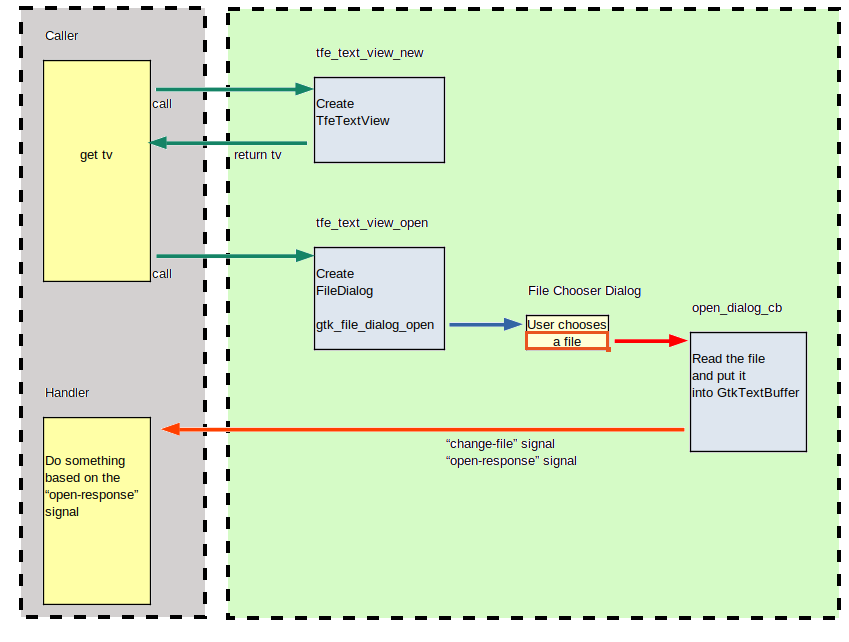

Open and read process is divided into two phases. One is creating and showing a file chooser dialog and the other is the callback function. The former is tfe_text_view_open and the latter is open_dialog_cb.

open_dialog_cb Function

static void
open_dialog_cb (GObject *source_object, GAsyncResult *res, gpointer data) {
  GtkFileDialog *dialog = GTK_FILE_DIALOG (source_object);
  TfeTextView *tv = TFE_TEXT_VIEW (data);
  GtkTextBuffer *tb = gtk_text_view_get_buffer (GTK_TEXT_VIEW (tv));
  GtkWidget *win = gtk_widget_get_ancestor (GTK_WIDGET (tv), GTK_TYPE_WINDOW);
  GFile *file;
  char *contents;
  gsize length;
  gboolean file_changed;
  GtkAlertDialog *alert_dialog;
  GError *err = NULL;

  if ((file = gtk_file_dialog_open_finish (dialog, res, &err)) != NULL
      && g_file_load_contents (file, NULL, &contents, &length, NULL, &err)) {
    gtk_text_buffer_set_text (tb, contents, length);
    g_free (contents);
    gtk_text_buffer_set_modified (tb, FALSE);
    // G_IS_FILE(tv->file) && tv->file == file => unref(tv->file), tv->file=file, emit response with SUCCESS
    // G_IS_FILE(tv->file) && tv->file != file => unref(tv->file), tv->file=file, emit response with SUCCESS, emit change-file
    // tv->file==NULL =>                                           tv->file=file, emit response with SUCCESS, emit change-file
    // The order is important. If you unref tv->file first, you can't compare tv->file and file anymore.
    // And the signals are emitted after new tv->file is set. Or the handler can't catch the new file.
    file_changed = (G_IS_FILE (tv->file) && g_file_equal (tv->file, file)) ? FALSE : TRUE;
    if (G_IS_FILE (tv->file))
      g_object_unref (tv->file);
    tv->file = file; // The ownership of 'file' moves to TfeTextView
    if (file_changed)
      g_signal_emit (tv, tfe_text_view_signals[CHANGE_FILE], 0);
    g_signal_emit (tv, tfe_text_view_signals[OPEN_RESPONSE], 0, TFE_OPEN_RESPONSE_SUCCESS);
  } else {
    if (err->code == GTK_DIALOG_ERROR_DISMISSED) // The user canceled the file chooser dialog
      g_signal_emit (tv, tfe_text_view_signals[OPEN_RESPONSE], 0, TFE_OPEN_RESPONSE_CANCEL);
    else {
      alert_dialog = gtk_alert_dialog_new ("%s", err->message);
      gtk_alert_dialog_show (alert_dialog, GTK_WINDOW (win));
      g_object_unref (alert_dialog);
      g_signal_emit (tv, tfe_text_view_signals[OPEN_RESPONSE], 0, TFE_OPEN_RESPONSE_ERROR);
    }
    g_clear_error (&err);
  }
}

This function is similar to save_dialog_cb. Both are callback functions on a GtkFileDialog object.

  • 2: It has three parameters like save_dialog_cb. They are:
    • GObject *source_object: The GObject instance that the operation was started with. It is actually the GtkFileDialog instance that is shown to the user. It will be cast to GtkFileDialog later.
    • GAsyncResult *res: The result of the asynchronous operation. It will be given to the gtk_dialog_open_finish function.
    • gpointer data: A user data set in the gtk_dialog_open function. It is actually a TfeTextView instance and it will be cast to TfeTextView later.
  • 14: The function gtk_file_dialog_open_finish returns a GFile object if the operation has succeeded. Otherwise it returns NULL.
  • 16-30: If the user selects a file and the file has successfully been read, the codes from 16 to 30 will be executed.
  • 16-18: Sets the buffer of tv with the text read from the file. And frees contents. Then sets the modified status to false.
  • 19-30: The codes are a bit complicated. See the comments. If the file (tv->file) is changed, “change-file” signal is emitted. The signal “open-response” is emitted with the parameter TFE_OPEN_RESPONSE_SUCCESS.
  • 31-41: If the operation failed, the codes from 31 to 41 will be executed.
  • 32-33: If the error code is GTK_DIALOG_ERROR_DISMISSED, it means that the user has clicked on the “Cancel” button or close button on the header bar. Then, “open-response” signal is emitted with the parameter TFE_OPEN_RESPONSE_CANCEL. The Dialog error is described here in the GTK API reference.
  • 35-38: If another error occurs, it shows an alert dialog to report the error and emits “open-response” signal with the parameter TFE_OPEN_RESPONSE_ERROR.
  • 40: Clears the error structure.

tfe_text_view_open Function

void
tfe_text_view_open (TfeTextView *tv, GtkWindow *win) {
  g_return_if_fail (TFE_IS_TEXT_VIEW (tv));
  // 'win' is used for a transient window of the GtkFileDialog.
  // It can be NULL.
  g_return_if_fail (GTK_IS_WINDOW (win) || win == NULL);

  GtkFileDialog *dialog;

  dialog = gtk_file_dialog_new ();
  gtk_file_dialog_open (dialog, win, NULL, open_dialog_cb, tv);
  g_object_unref (dialog);
}
  • 3-6: Check the type of the arguments tv and win. Public functions always need to check the arguments.
  • 10: Creates a GtkFileDialog instance.
  • 11: Calls gtk_file_dialog_open. The arguments are:
    • dialog: the GtkFileDialog instance
    • win: the transient window for the file chooser dialog
    • NULL: NULL means no cancellable object
    • open_dialog_cb: callback function
    • tv: user data which is used in the callback function
  • 12: Releases the dialog instance because it is useless anymore.

The whole process between the caller and TfeTextView is shown in the following diagram. It is really complicated. Because gtk_file_dialog_open can’t return the status of the operation.

Caller and TfeTextView
  1. A caller gets a pointer tv to a TfeTextView instance by calling tfe_text_view_new.
  2. The caller connects the handler (left bottom in the diagram) and the signal “open-response”.
  3. It calls tfe_text_view_open to prompt the user to select a file from the file chooser dialog.
  4. When the dialog is closed, the callback open_dialog_cb is called.
  5. The callback function reads the file and inserts the text into GtkTextBuffer and emits a signal to inform the status as a response code.
  6. The handler of the “open-response” signal is invoked and the operation status is given to it as an argument (signal parameter).

Getting GFile in TfeTextView

You can get the GFile in a TfeTextView instance with tfe_text_view_get_file. It is very simple.

GFile *
tfe_text_view_get_file (TfeTextView *tv) {
  g_return_val_if_fail (TFE_IS_TEXT_VIEW (tv), NULL);

  if (G_IS_FILE (tv->file))
    return g_file_dup (tv->file);
  else
    return NULL;
}

The important thing is to duplicate tv->file. Otherwise, if the caller frees the GFile object, tv->file is no more guaranteed to point to the GFile. Another reason to use g_file_dup is that GFile isn’t thread-safe. If you use GFile in the different thread, the duplication is necessary. See Gio API Reference – g_file_dup.

The API Document and Source File of tfetextview.c

Refer API document of TfeTextView.

You can find all the TfeTextView source codes under /src/tfetextview directories.
