Instance Initialization and destruction

A new version of the text file editor (tfe) will be made in this section and the following four sections. It is tfe5. There are many changes from the prior version. They are located in two directories, src/tfe5 and src/tfetextview.

Encapsulation

We’ve divided C source file into two parts. But it is not enough in terms of encapsulation.

  • tfe.c includes everything other than TfeTextView. It should be divided into at least two parts, tfeapplication.c and tfenotebook.c.
  • Header files also need to be organized.

However, first of all, I’d like to focus on the object TfeTextView. It is a child object of GtkTextView and has a new member file in it. The important thing is to manage the Gfile object pointed by file.

  • What is necessary to GFile when creating (or initializing) TfeTextView?
  • What is necessary to GFile when destructing TfeTextView?
  • Should TfeTextView read/write a file by itself or not?
  • How it communicates with objects outside?

You need to know at least class, instance and signals before thinking about them. I will explain them in this section and the next section. After that I will explain:

  • Organizing functions.
  • How to use GtkFileDialog. It is a new class made in the version 4.10 and replaces GtkFileChooserDialog.

GObject and its children

GObject and its children are objects, which have both class and object C structures. First, think about instances. An instance is memories which has the object structure. The following is the structure of TfeTextView.

/* This typedef statement is automatically generated by the macro G_DECLARE_FINAL_TYPE */
typedef struct _TfeTextView TfeTextView;

struct _TfeTextView {
  GtkTextView parent;
  GFile *file;
};

The members of the structure are:

  • The member parent is a GtkTextView C structure. It is declared in gtktextview.h. GtkTextView is the parent of TfeTextView.
  • The member file is a pointer to a GFile. It can be NULL if the TfeTextView instance has no file. The most common case is that the instance is newly created.

You can find the declaration of the structures of the ancestors in the source files in GTK or GLib. The following is extracted from the source files (not exactly the same).

typedef struct _GObject GObject;
typedef struct _GObject GInitiallyUnowned;
struct  _GObject
{
  GTypeInstance  g_type_instance;
  volatile guint ref_count;
  GData         *qdata;
};

typedef struct _GtkWidget GtkWidget;
struct _GtkWidget
{
  GInitiallyUnowned parent_instance;
  GtkWidgetPrivate *priv;
};

typedef struct _GtkTextView GtkTextView;
struct _GtkTextView
{
  GtkWidget parent_instance;
  GtkTextViewPrivate *priv;
};

In each structure, its parent is declared at the top of the members. So, all the ancestors are included in the child object. The structure of TfeTextView is like the following diagram.

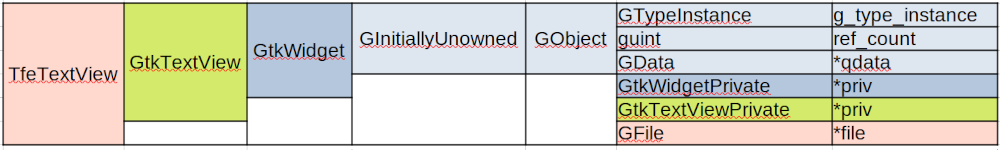

The structure of the instance TfeTextView

Derivable classes (ancestor classes) have their own private data area which are not included by the structure above. For example, GtkWidget has GtkWidgetPrivate (C structure) for its private data.

Notice declarations are not definitions. So, no memories are allocated when C structures are declared. Memories are allocated to them from the heap area when the tfe_text_view_new function is called. At the same time, the ancestors’ private area allocated for the TfeTetView. They are hidden from TfeTextView and it can’t access to them directly. The created memory is called instance. When a TfeTextView instance is created, it is given three data area.

  • The instance (C structure).
  • GtkWidgetPrivate structure.
  • GtkTextViewPrivate structure.

TfeTextView functions can access to its instance only. The GtkWidgetPrivate and GtkTextViewPrivate are used by the ancestors’ functions. See the following example.

GtkWidget *tv = tfe_text_view_new ();
GtkTextBuffer *buffer = gtk_text_view_get_buffer (GTK_TEXT_VIEW (tv));

The parent’s function gtk_text_view_get_buffer accesses the GtkTextViewPrivate data (owned by tv). There is a pointer, which points the GtkBuffer, in the private area and the function returns the pointer. (Actual behavior is a bit more complicated.)

TfeTextView instances inherit the ancestors functions like this.

A TfeTextView instance is created every time the tfe_text_view_new function is called. Therefore, multiple TfeTextView instances can exist.

Initialization of TfeTextView instances

The function tfe_text_view_new creates a new TfeTextView instance.

GtkWidget *
tfe_text_view_new (void) {
  return GTK_WIDGET (g_object_new (TFE_TYPE_TEXT_VIEW, "wrap-mode", GTK_WRAP_WORD_CHAR, NULL));
}

When this function is invoked, a TfeTextView instance is created and initialized. The initialization process is as follows.

  1. When the instance is created, GtkWidgetPrivate and GtkTextViewPrivate structures are also created
  2. Initializes GObject (GInitiallyUnowned) part in the TfeTextView instance.
  3. Initializes GtkWidget part (the first priv) in the TfeTextView instance and GtkWidgetPrivate structure.
  4. Initializes GtkTextView part (the second priv) in the TfeTextView instance and GtkTextViewPrivate structure.
  5. Initializes TfeTextView part (file) in the TfeTextView instance.

The step two through four is done by g_object_init, gtk_widget_init and gtk_text_view_init. They are called by the system automatically and you don’t need to care about them. Step five is done by the function tfe_text_view_init in tfetextview.c.

static void
tfe_text_view_init (TfeTextView *tv) {
  tv->file = NULL;
}

This function just initializes tv->file to be NULL.

Functions and Classes

In Gtk, all objects derived from GObject have classes and instances (but abstract objects have only classes). Instances are memory of C structure, which are described in the previous two subsections. Each object can have more than one instance. Those instances have the same structure. Instances just have data. Therefore, it doesn’t define object’s behavior. We need at least two things. One is functions and the other is class methods.

The latest GTK 4 document classifies functions into a constructor, functions and instance methods.

  • constructors: Their name are always gtk_(objectname)_new. They create the objects.
  • functions: Their first parameter (argument) is NOT the instance. Usually functions are utility functions for the class.
  • instance methods: Their first parameter (argument) is the instance. They do some task for the specific instance.

This tutorial uses functions in two ways, broad or narrow sense.

You’ve already seen many functions. For example,

  • TfeTextView *tfe_text_view_new (void); is a function (constructor) to create a TfeTextView instance.
  • GtkTextBuffer *gtk_text_view_get_buffer (GtkTextView *textview) is a function (instance method) to get a GtkTextBuffer from GtkTextView.

Functions are public, which means that they are expected to be used by other objects. They are similar to public methods in object oriented languages.

Class (C structure) mainly consists of pointers to C functions. They are called class methods and used by the object itself or its descendant objects. For example, GObject class is declared in gobject.h in GLib source files.

typedef struct _GObjectClass             GObjectClass;
typedef struct _GObjectClass             GInitiallyUnownedClass;

struct  _GObjectClass
{
  GTypeClass   g_type_class;

  /*< private >*/
  GSList      *construct_properties;

  /*< public >*/
  /* seldom overridden */
  GObject*   (*constructor)     (GType                  type,
                                 guint                  n_construct_properties,
                                 GObjectConstructParam *construct_properties);
  /* overridable methods */
  void       (*set_property)        (GObject        *object,
                                         guint           property_id,
                                         const GValue   *value,
                                         GParamSpec     *pspec);
  void       (*get_property)        (GObject        *object,
                                         guint           property_id,
                                         GValue         *value,
                                         GParamSpec     *pspec);
  void       (*dispose)         (GObject        *object);
  void       (*finalize)        (GObject        *object);
  /* seldom overridden */
  void       (*dispatch_properties_changed) (GObject      *object,
                         guint     n_pspecs,
                         GParamSpec  **pspecs);
  /* signals */
  void       (*notify)          (GObject    *object,
                     GParamSpec *pspec);

  /* called when done constructing */
  void       (*constructed)     (GObject    *object);

  /*< private >*/
  gsize     flags;

  gsize         n_construct_properties;

  gpointer pspecs;
  gsize n_pspecs;

  /* padding */
  gpointer  pdummy[3];
};

There’s a pointer to the function dispose in line 25.

void (*dispose) (GObject *object);

The declaration is a bit complicated. The asterisk before the identifier dispose means pointer. So, the pointer dispose points to a function which has one parameter, which points a GObject structure, and returns no value. In the same way, line 26 says finalize is a pointer to the function which has one parameter, which points a GObject structure, and returns no value.

void (*finalize) (GObject *object);

Look at the declaration of _GObjectClass so that you would find that most of the members are pointers to functions.

  • 13: A function pointed by constructor is called when the instance is created. It completes the initialization of the instance.
  • 25: A function pointed by dispose is called when the instance destructs itself. Destruction process is divided into two phases. The first one is called disposing. In this phase, the instance releases all the references to other instances. The second phase is finalizing.
  • 26: A function pointed by finalize finishes the destruction process.
  • The other pointers point to functions which are called while the instance lives.

These functions are called class methods. The methods are open to its descendants. But not open to the objects which are not the descendants.

TfeTextView class

TfeTextView class is a structure and it includes all its ancestors’ classes in it. Therefore, classes have similar hierarchy to instances.

GObjectClass (GInitiallyUnownedClass) -- GtkWidgetClass -- GtkTextViewClass -- TfeTextViewClass

The following is extracted from the source codes (not exactly the same).

struct _GtkWidgetClass
{
  GInitiallyUnownedClass parent_class;

  /*< public >*/

  /* basics */
  void (* show)                (GtkWidget        *widget);
  void (* hide)                (GtkWidget        *widget);
  void (* map)                 (GtkWidget        *widget);
  void (* unmap)               (GtkWidget        *widget);
  void (* realize)             (GtkWidget        *widget);
  void (* unrealize)           (GtkWidget        *widget);
  void (* root)                (GtkWidget        *widget);
  void (* unroot)              (GtkWidget        *widget);
  void (* size_allocate)       (GtkWidget           *widget,
                                int                  width,
                                int                  height,
                                int                  baseline);
  void (* state_flags_changed) (GtkWidget        *widget,
                                GtkStateFlags     previous_state_flags);
  void (* direction_changed)   (GtkWidget        *widget,
                                GtkTextDirection  previous_direction);

  /* size requests */
  GtkSizeRequestMode (* get_request_mode)               (GtkWidget      *widget);
  void              (* measure) (GtkWidget      *widget,
                                 GtkOrientation  orientation,
                                 int             for_size,
                                 int            *minimum,
                                 int            *natural,
                                 int            *minimum_baseline,
                                 int            *natural_baseline);

  /* Mnemonics */
  gboolean (* mnemonic_activate)        (GtkWidget           *widget,
                                         gboolean             group_cycling);

  /* explicit focus */
  gboolean (* grab_focus)               (GtkWidget           *widget);
  gboolean (* focus)                    (GtkWidget           *widget,
                                         GtkDirectionType     direction);
  void     (* set_focus_child)          (GtkWidget           *widget,
                                         GtkWidget           *child);

  /* keyboard navigation */
  void     (* move_focus)               (GtkWidget           *widget,
                                         GtkDirectionType     direction);
  gboolean (* keynav_failed)            (GtkWidget           *widget,
                                         GtkDirectionType     direction);

  gboolean     (* query_tooltip)      (GtkWidget  *widget,
                                       int         x,
                                       int         y,
                                       gboolean    keyboard_tooltip,
                                       GtkTooltip *tooltip);

  void         (* compute_expand)     (GtkWidget  *widget,
                                       gboolean   *hexpand_p,
                                       gboolean   *vexpand_p);

  void         (* css_changed)                 (GtkWidget            *widget,
                                                GtkCssStyleChange    *change);

  void         (* system_setting_changed)      (GtkWidget            *widget,
                                                GtkSystemSetting      settings);

  void         (* snapshot)                    (GtkWidget            *widget,
                                                GtkSnapshot          *snapshot);

  gboolean     (* contains)                    (GtkWidget *widget,
                                                double     x,
                                                double     y);

  /*< private >*/

  GtkWidgetClassPrivate *priv;

  gpointer padding[8];
};

struct _GtkTextViewClass
{
  GtkWidgetClass parent_class;

  /*< public >*/

  void (* move_cursor)           (GtkTextView      *text_view,
                                  GtkMovementStep   step,
                                  int               count,
                                  gboolean          extend_selection);
  void (* set_anchor)            (GtkTextView      *text_view);
  void (* insert_at_cursor)      (GtkTextView      *text_view,
                                  const char       *str);
  void (* delete_from_cursor)    (GtkTextView      *text_view,
                                  GtkDeleteType     type,
                                  int               count);
  void (* backspace)             (GtkTextView      *text_view);
  void (* cut_clipboard)         (GtkTextView      *text_view);
  void (* copy_clipboard)        (GtkTextView      *text_view);
  void (* paste_clipboard)       (GtkTextView      *text_view);
  void (* toggle_overwrite)      (GtkTextView      *text_view);
  GtkTextBuffer * (* create_buffer) (GtkTextView   *text_view);
  void (* snapshot_layer)        (GtkTextView      *text_view,
                      GtkTextViewLayer  layer,
                      GtkSnapshot      *snapshot);
  gboolean (* extend_selection)  (GtkTextView            *text_view,
                                  GtkTextExtendSelection  granularity,
                                  const GtkTextIter      *location,
                                  GtkTextIter            *start,
                                  GtkTextIter            *end);
  void (* insert_emoji)          (GtkTextView      *text_view);

  /*< private >*/

  gpointer padding[8];
};

/* The following definition is generated by the macro G_DECLARE_FINAL_TYPE */
typedef struct {
  GtkTextView parent_class;
} TfeTextViewClass;
  • 120-122: This three lines are generated by the macro G_DECLARE_FINAL_TYPE. So, they are not written in either tfe_text_view.h or tfe_text_view.c.
  • 3, 84, 121: Each class has its parent class at the first member of its structure. It is the same as instance structures.
  • Class members in ancestors are open to the descendant class. So, they can be changed in tfe_text_view_class_init function. For example, the dispose pointer in GObjectClass will be overridden later in tfe_text_view_class_init. (Override is an object oriented programming terminology. Override is rewriting ancestors’ class methods in the descendant class.)
  • Some class methods are often overridden. set_property, get_property, dispose, finalize and constructed are such methods.

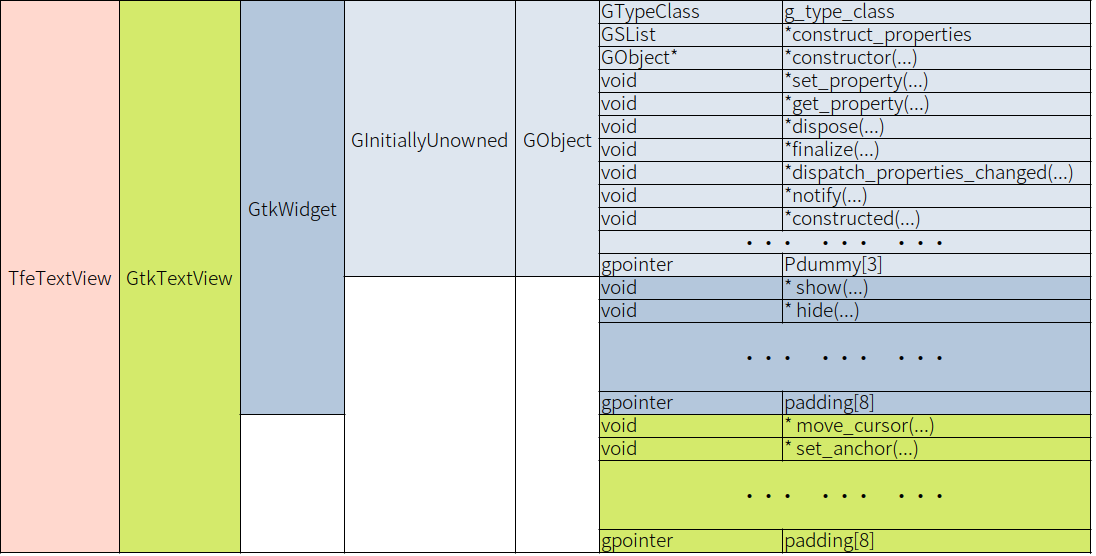

TfeTextViewClass includes its ancestors’ class in it. It is illustrated in the following diagram.

The structure of TfeTextView Class

Destruction of TfeTextView

Every Object derived from GObject has a reference count. If an object A refers to an object B, then A keeps a pointer to B in A and at the same time increases the reference count of B by one with the function g_object_ref (B). If A doesn’t need B any longer, A discards the pointer to B (usually it is done by assigning NULL to the pointer) and decreases the reference count of B by one with the function g_object_unref (B).

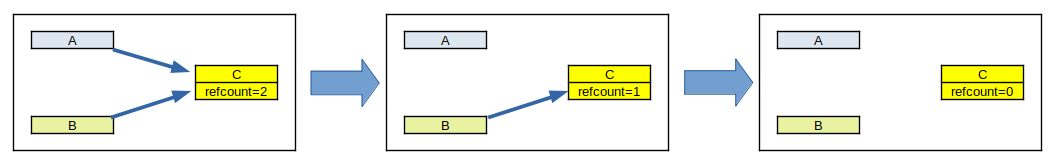

If two objects A and B refer to C, then the reference count of C is two. If A no longer needs C, A discards the pointer to C and decreases the reference count in C by one. Now the reference count of C is one. In the same way, if B no longer needs C, B discards the pointer to C and decreases the reference count in C by one. At this moment, no object refers to C and the reference count of C is zero. This means C is no longer useful. Then C destructs itself and finally the memories allocated to C is freed.

Reference count of B

The idea above is based on an assumption that an object referred by nothing has reference count of zero. When the reference count drops to zero, the object starts its destruction process. The destruction process is split into two phases: disposing and finalizing. In the disposing process, the object invokes the function pointed by dispose in its class to release all references to other instances. After that, it invokes the function pointed by finalize in its class to complete the destruction process.

In the destruction process, TfeTextView needs to unref the GFile pointed by tv->file. You must write the dispose handler tfe_text_view_dispose.

static void
tfe_text_view_dispose (GObject *gobject) {
  TfeTextView *tv = TFE_TEXT_VIEW (gobject);

  if (G_IS_FILE (tv->file))
    g_clear_object (&tv->file);

  G_OBJECT_CLASS (tfe_text_view_parent_class)->dispose (gobject);
}
  • 5,6: If tv->file points a GFile, it decreases the reference count of the GFile instance. The function g_clear_object decreases the reference count and assigns NULL to tv->file. In dispose handlers, we usually use g_clear_object rather than g_object_unref.

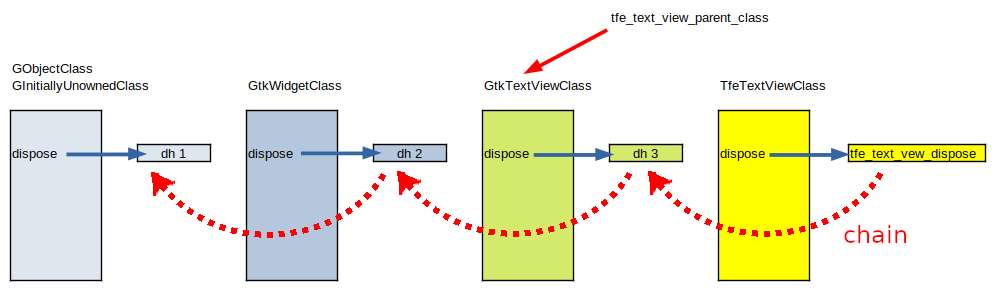

  • 8: invokes parent’s dispose handler. (This will be explained later.)

In the disposing process, the object uses the pointer in its class to call the handler. Therefore, tfe_text_view_dispose needs to be registered in the class when the TfeTextView class is initialized. The function tfe_text_view_class_init is the class initialization function and it is declared in the G_DEFINE_TYPE macro expansion.

static void
tfe_text_view_class_init (TfeTextViewClass *class) {
  GObjectClass *object_class = G_OBJECT_CLASS (class);

  object_class->dispose = tfe_text_view_dispose;
}

Each ancestors’ class has been created before TfeTextViewClass is created. Therefore, there are four classes and each class has a pointer to each dispose handler. Look at the following diagram. There are four classes – GObjectClass (GInitiallyUnownedClass), GtkWidgetClass, GtkTextViewClass and TfeTextViewClass. Each class has its own dispose handler – dh1, dh2, dh3 and tfe_text_view_dispose.

dispose handlers

Now, look at the tfe_text_view_dispose program above. It first releases the reference to GFile object pointed by tv->file. Then it invokes its parent’s dispose handler in line 8.

G_OBJECT_CLASS (tfe_text_view_parent_class)->dispose (gobject);

A variable tfe_text_view_parent_class, which is made by G_DEFINE_FINAL_TYPE macro, is a pointer that points the parent object class. The variable gobject is a pointer to TfeTextView instance which is casted as a GObject instance. Therefore, G_OBJECT_CLASS (tfe_text_view_parent_class)->dispose points the handler dh3 in the diagram above. The statement G_OBJECT_CLASS (tfe_text_view_parent_class)->dispose (gobject) is the same as dh3 (gobject), which means it releases all the reference to the other instances in the GtkTextViewPrivate in the TfeTextView instance. After that, dh3 calls dh2, and dh2 calls dh1. Finally all the references are released.
